Tangga Miring Kamar Mesin Kelautan
Merek :XIFAN MARINE
produk asal :Cina
waktu pengiriman :15 hari
kapasitas pasokan :10000pcs/Bulan
1. Bahan: baja
2. Standar: CB*833-87
3. Sertifikat: CCS, DNV, BV, LR, KR, NK, dll.
4. Jenis: A, B, C, D
5. Kemiringan: 55°, 60°
6. Lebar tangga: 450mm, 600mm
7. Tinggi tangga: 750～2850mm, 3000～4050mm
8. Pegangan opsional
Tangga Miring Kamar Mesin Kelautan
Tangga miring laut ini digunakan di ruang mesin berbagai kapal. Dengan fitur struktur yang andal dan anti selip, tangga miring ruang mesin ini terbuat dari baja. Tangga miring kami dirancang sesuai dengan standar ISO dan memenuhi persyaratan semua jenis Masyarakat Klasifikasi. Oleh karena itu, sertifikat seperti CCS, BV, DNV, NK, LR, KR, dan RINA tersedia sesuai kebutuhan klien.

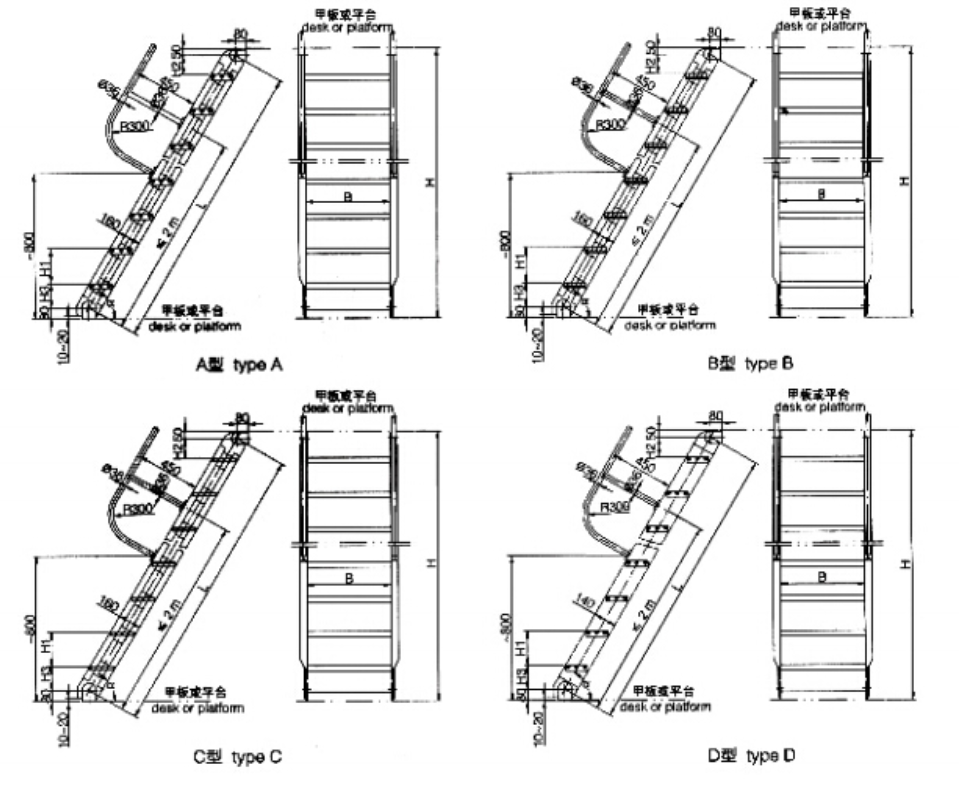

Gambar dan spesifikasi:
Jenis | Stringer | Melangkah | Kecenderungan (A) | Lebar tangga (B:mm) | Ketinggian tangga (Hmm) |
A | Baja datar | Plat ceker | 55°, 60° | 450, 600 | 750～2850 |
B | Jaring baja | ||||
C | Baja sudut | Plat ceker | 3000～4050 | ||
D | Jaring baja |
TIDAK. | Jenis | Jumlah langkah | H (mm) | H1 (mm) | H2 (mm) | H3 (mm) | L (mm) | Berat (kg) | ||||||||
B=450mm | B=600mm | |||||||||||||||
a=55° | a=60 ° | a=55° | a=60 ° | a=55° | a=60 ° | |||||||||||
AC | B/D | AC | B/D | AC | B/D | AC | B/D | |||||||||
1 | A, B | 3 | 750 | 230 | 170 | 120 | 911 | 892 | 33.8 | 32.9 | 32.5 | 31.6 | 38.7 | 37.4 | 37.4 | 36.1 |
2 | 3 | 900 | 240 | 190 | 230 | 1124 | 1065 | 38.6 | 37.7 | 37.1 | 36.2 | 43.8 | 42.5 | 42.2 | 40.9 | |
3 | 4 | 1050 | 230 | 180 | 180 | 1307 | 1238 | 47.0 | 46.1 | 45.2 | 44.6 | 53.7 | 52.5 | 51.9 | 50.7 | |
4 | 5 | 1200 | 230 | 165 | 115 | 1490 | 1412 | 55.5 | 55.1 | 53.5 | 53.1 | 63.6 | 62.7 | 61.4 | 60,5 | |
5 | 5 | 1350 | 235 | 185 | 225 | 1673 | 1585 | 60.3 | 59.9 | 58.1 | 57.7 | 68.6 | 67.7 | 66.3 | 65.4 | |
6 | 6 | 1500 | 230 | 180 | 170 | 1856 | 1758 | 68.7 | 68.5 | 66.2 | 66.0 | 78.5 | 77.8 | 75.8 | 75.1 | |
7 | 7 | 1650 | 230 | 155 | 115 | 2039 | 1931 | 77.2 | 77.3 | 74.1 | 71.5 | 88.6 | 88.1 | 85.6 | 85.1 | |
8 | 7 | 1800 | 235 | 185 | 205 | 2222 | 2104 | 82.0 | 82.1 | 78.9 | 79.0 | 93.6 | 93.1 | 90.4 | 89.9 | |
9 | 8 | 1950 | 230 | 180 | 160 | 2406 | 2278 | 90.4 | 90.7 | 87.0 | 87.3 | 103.4 | 103.2 | 99,8 | 99.6 | |
10 | 8 | 2100 | 240 | 190 | 230 | 2589 | 2451 | 95.1 | 95.7 | 91.7 | 92.0 | 108.6 | 108.4 | 104.8 | 104.6 | |
11 | 9 | 2250 | 230 | 180 | 230 | 2772 | 2624 | 103.8 | 104.3 | 99,9 | 100.4 | 118.5 | 118.4 | 114.4 | 114.3 | |
12 | 10 | 2400 | 230 | 180 | 150 | 2955 | 2797 | 112.2 | 112.9 | 108.0 | 108.7 | 128.3 | 128.4 | 123.9 | 124.0 | |
13 | 10 | 2550 | 240 | 190 | 200 | 3138 | 2970 | 117.2 | 117.9 | 112.7 | 113.4 | 133.6 | 133.7 | 128.9 | 129.0 | |
14 | 11 | 2700 | 230 | 180 | 220 | 3321 | 3144 | 125.5 | 126.5 | 120.8 | 121.8 | 143.5 | 143.8 | 138.5 | 138.8 | |
15 | 12 | 2850 | 230 | 180 | 140 | 3504 | 3317 | 133.9 | 135.1 | 128.9 | 130.1 | 153.2 | 153.8 | 117.9 | 148.8 | |
16 | C, D | 12 | 3000 | 235 | 185 | 230 | 3687 | 3490 | 158.8 | 160.0 | 152.5 | 153.7 | 178.4 | 179.2 | 171.8 | 172.4 |
17 | 13 | 3150 | 230 | 180 | 210 | 3993 | 3663 | 168.2 | 169.6 | 161.5 | 162.9 | 189.3 | 190.1 | 182.3 | 183.1 | |
18 | 14 | 3300 | 230 | 180 | 130 | 4951 | 3837 | 177.5 | 179.2 | 170.5 | 172.2 | 200.1 | 201.0 | 192.8 | 193.7 | |
19 | 14 | 3450 | 235 | 185 | 210 | 4237 | 4019 | 183.5 | 185.2 | 176.2 | 177.9 | 206.4 | 207.3 | 198.7 | 199.6 | |
20 | 15 | 360 | 230 | 180 | 200 | 4430 | 4183 | 192.9 | 194.8 | 185.2 | 187.1 | 217.2 | 218.4 | 209.1 | 210.3 | |
21 | 16 | 3750 | 230 | 180 | 120 | 4603 | 4356 | 202.3 | 204.4 | 194.3 | 196.1 | 227.9 | 229.3 | 219.5 | 220.9 | |
22 | 16 | 3900 | 235 | 185 | 190 | 4786 | 4529 | 208.3 | 210.4 | 199.9 | 202.0 | 234.3 | 235.7 | 225.5 | 226.9 | |
23 | 17 | 4050 | 230 | 180 | 190 | 4969 | 4703 | 217.6 | 230.0 | 209.0 | 211.4 | 245.1 | 216.7 | 236.0 | 237.6 | |
Contoh identifikasi:
Kemiringan a = 60 ° dan lebar tangga B = 600mm, tinggi tangga H = 2400mm untuk ruang mesin kelautan tipe A tangga miring ----- A60-600×2400 CB*833-87
