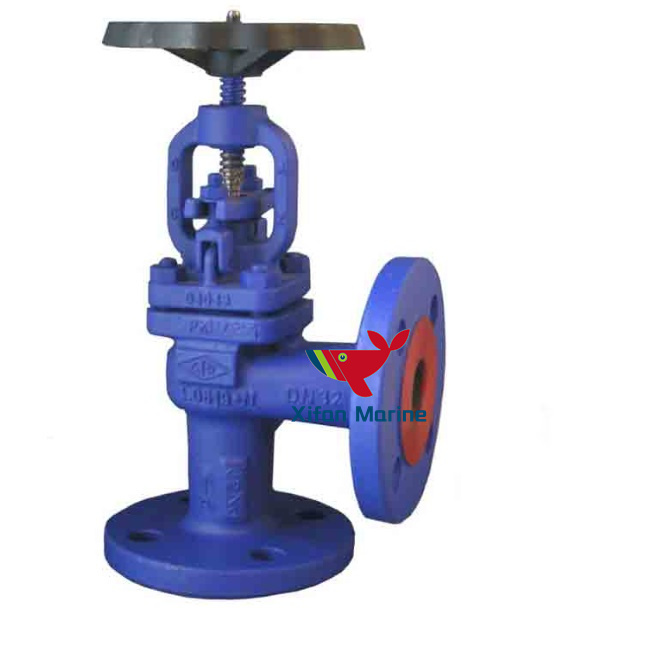

Sekrup Globe Valve Non-Return
Merek :XIFAN MARINE
produk asal :Cina
waktu pengiriman :15 hari
kapasitas pasokan :10000pcs/Bulan
The valve is used for shipbuilding, ship repair and oil platform with high quality.
1 - Body - Cast Steel - SC49
2 - Seat - Stainless Steel - SCS2
3 - Disc - Stainless Steel - SCS2
Sekrup Globe Valve Non-Return
Bahan Utama
1 - Badan - Baja Cor - SC49
2 - Kursi - Baja Tahan Karat - SCS2
3 - Disk - Baja Tahan Karat - SCS2
4 - Batang - Baja Tahan Karat - SUS403

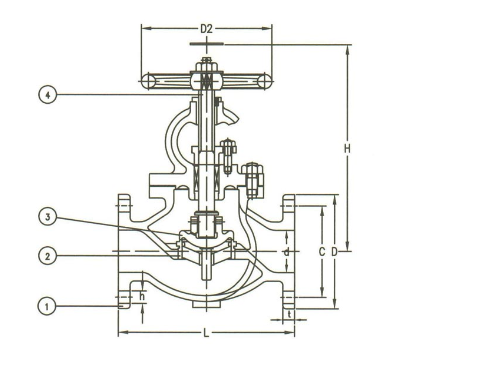

Gambar & Dimensi Katup SDNR
3. Spesifikasi :
Barang NO. | Ukuran | L (mm) | D (mm) | C (mm) | Jumlah Lubang | H |
F7471-050 | 50 | 220 | 155 | 120 | 4 | 19 |
F7471-065 | 65 | 270 | 175 | 140 | 4 | 19 |
F7471-080 | 80 | 300 | 185 | 150 | 8 | 19 |
F7471-100 | 100 | 350 | 210 | 175 | 8 | 19 |
F7471-125 | 125 | 420 | 250 | 210 | 8 | 23 |
F7471-150 | 150 | 490 | 280 | 240 | 8 | 23 |
F7471-200 | 200 | 570 | 330 | 290 | 12 | 23 |
F7471-250 | 250 | 740 | 400 | 355 | 12 | 25 |
F7471-300 | 300 | 840 | 445 | 400 | 16 | 25 |
Menampilkan:
Pls hubungi kami untuk lebih jelasnya jika Anda tertarik.
