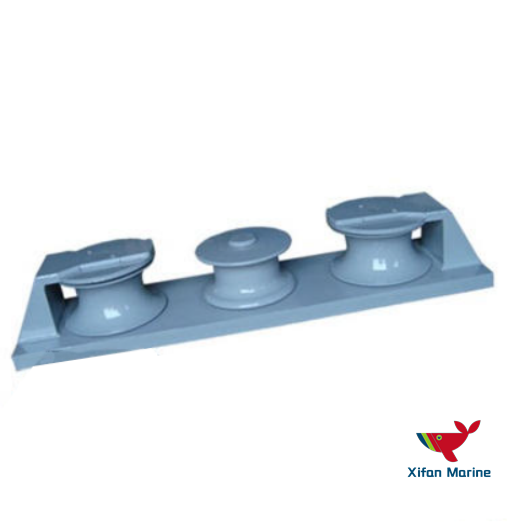

Tipe C CB/T38-1999 Three Roller Fairlead Chock
Merek :XIFAN MARINE
produk asal :Cina
waktu pengiriman :15-20 hari
kapasitas pasokan :5000 pcs/hari
Standar: CB/T38-1999
Model: Tipe C
Bahan: Baja Cor
SWL: 36T~140T
Sertifikat: Sertifikat IACS tersedia
Permukaan: Dengan lapisan pelindung anti korosi

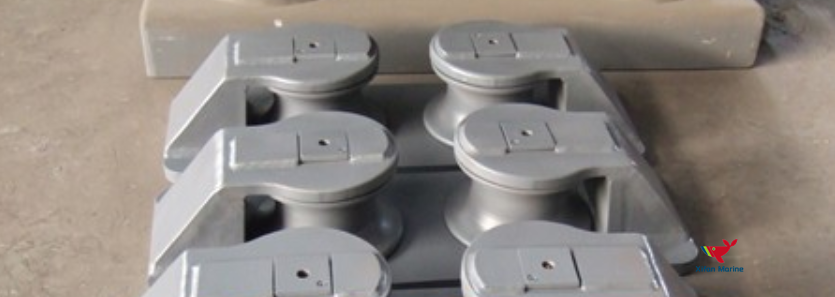

Tipe C CB/T38-1999 Three Roller Fairlead Chock
Xifan Marine menawarkan roller chock dan mooring chock. Berdasarkan standar CB/T38-1999, cast roller chock kami memiliki dua tipe rol dan tiga tipe rol. Produk mooring chock terutama meliputi: Panama chock (AC), Panama chock (BC), US panama chock, DIN81915 mooring chock, JIS F 2005-1975 closed mooring chock, JISF 2007-1976 mooring chock, Spain chock, JIS F 2030-1987 Chock mooring titik tunggal, chock mooring UE dll.
Parameter Utama :
| Ukuran nominal | Tali MBL(kN) | Max.dia.dari tali | Tubuh | Rol akhir | Gandar ujung | Rol tengah | Poros tengah | Berat | |||||||
| Kabel baja | Tali serat sintetis | L | B | h1 | D | D1 | H1 | D | D | D1 | H1 | d1 | (kg) | ||
| 6*24 | |||||||||||||||
| 75 | 23.3 | 7.4 | 12 | 550 | 170 | 70 | 75 | 120 | 64 | 22 | 75 | 120 | 64 | 34 | 27 |
| 100 | 52.5 | 11 | 18 | 750 | 200 | 92 | 100 | 160 | 86 | 32 | 100 | 160 | 86 | 48 | 60 |
| 125 | 93.4 | 15 | 24 | 920 | 250 | 108 | 125 | 200 | 102 | 40 | 125 | 200 | 102 | 63 | 116 |
| 150 | 145.8 | 18.5 | 30 | 1120 | 300 | 126 | 150 | 240 | 120 | 50 | 150 | 240 | 120 | 75 | 198 |
| 200 | 246.6 | 24 | 40 | 1420 | 370 | 161 | 200 | 310 | 154 | 63 | 200 | 310 | 154 | 95 | 398 |
| 250 | 373.6 | 30 | 48 | 1780 | 470 | 191 | 250 | 400 | 184 | 75 | 250 | 400 | 184 | 120 | 767 |
| 300 | 472.7 | 33.5 | 56 | 2120 | 550 | 231 | 300 | 480 | 224 | 90 | 300 | 480 | 224 | 140 | 1240 |
| 350 | 583.5 | 37.5 | 64 | 2440 | 640 | 251 | 350 | 560 | 244 | 100 | 350 | 560 | 244 | 150 | 1795 |

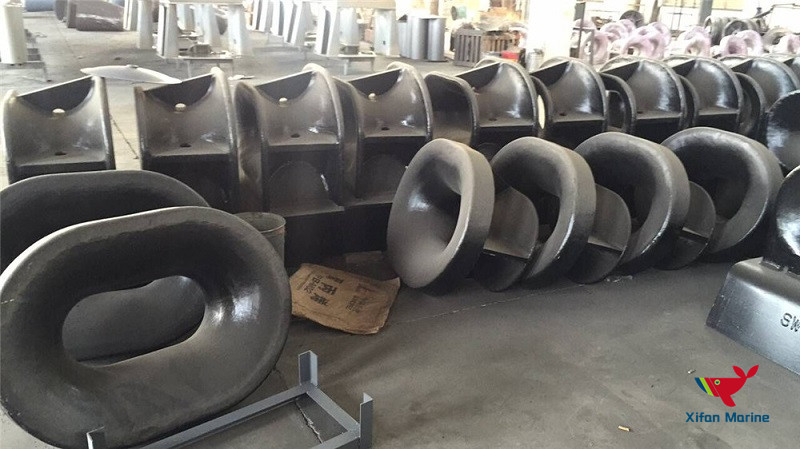

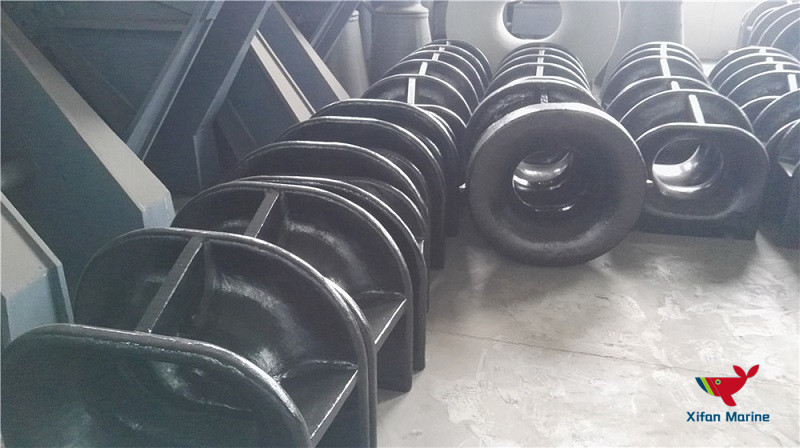

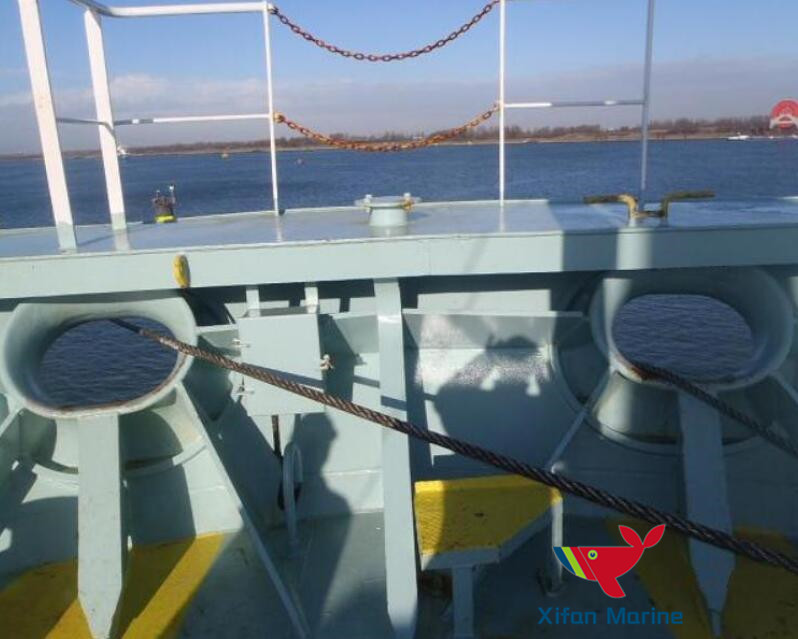

Kasus:

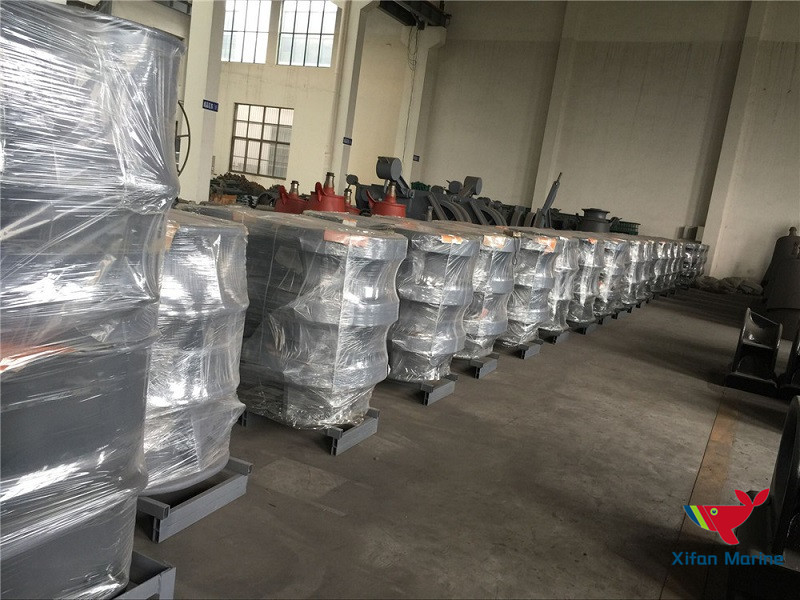

Rincian pengiriman :
Lebih banyak Mooring Chock dapat ditawarkan, silakan hubungi kami untuk lebih jelasnya.
